Carbon Fiber Drive Shafts
Carbon fiber drive shafts are made of carbon fiber and are being utilized more frequently in the automobile, business, defense, industrial, and marine sectors. Due to the specific combination of skills they possess, they frequently find usage in the most difficult and specialized industries.

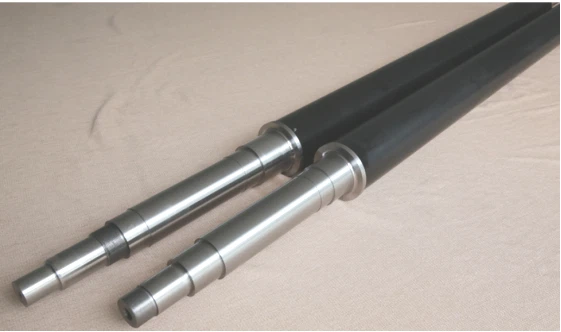

Here are some different shafts for your ref:
Manufacture Process
Carbon fiber drive shafts is Low inertia, high torque carbon fiber drive shaft (including flexible coupling)
Stainless steel or other metal for shaft coupling
The maximum diameter: as requested,<300mm
The maximum length: as requested, <5000mm
Composite Elastic Printing Plate Roller Expanding Sleeve
Inflatable shaft roller for printing color plate
High-performance paper production equipment
breast roller (shaking roller)
Carbon fiber drive shafts Advantages
1. In addition to the well-known good stiffness and less deflection (capable of carrying strong torque and tension at high speeds) than traditional steel and aluminum rollers, the Carbon fiber drive shafts have a smoother surface. The bearing wear is reduced, and resistance is smaller so that the longer working life and less maintenance cost.
2. Thanks to the lightweight and high elastic modulus of carbon fiber, the diameter and rotary inertia of the roller are reduced; And the range of high speed and stable rotation speed is enlarged, also The limiting speed of the roll body is increased, which is more than twice the speed of the steel roll, so that the speed of the carbon prop shaft is more than double that of the steel roller.
3. The weight is lighter than the traditional roller, so the inertia is smaller during high-speed operation, and the torque is reduced by an average of 50% compared with the steel roller.
4. The driveshaft carbon fiber is conductive and also can remove static electricity.
5. The Carbon fiber drive shaft itself is corrosion-resistant and is suitable for occasions with chemical corrosion.
6. The carbon fiber rollers are not sensitive to temperature, and their expansion coefficient is 0.2x10-6/°C. Its own change can be ignored under the change in ambient temperature, which makes the equipment more stable.
Case Presentation of Our Carbon fiber drive shafts
Outer Diameter: 100mm, Length: 4000mm, Weight: 5kg
Slender static balance linear beating 0.02mm,
Dynamic balance 2000 rpm 5g,
Concentric beating 0.05mm
Product roundness < 0.01mm
